Liquid Pigment Dispensers
Assortments of custom liquid weighing dispensers are also available from INDUSTEC. Liquid dispensers are an economical alternative for systems where colored batches are made and the annual pigment consumption is limited.
Mixing tanks for on-site slurry preparations are suitable for users with a high consumption rate, offering them the flexibility to select the best deal possible for powder pigments.
What makes INDUSTEC liquid pigment dispensers the clear choice for your facility?
Easy to Interface
The dispenser control system can communicate with your existing batch control panel via discrete I/O. If a more sophisticated control is designed, the system can be interfaced directly into a batch control network.
Easy to Operate
A touch screen operator interface allows easy access to change formulas or parameters and also monitor system performance during production.
Easy to Maintain
To minimize the expense of down time, our system has been designed to require minimum maintenance and make it as easy as possible when it must be performed. If an emergency should occur, we stock a full line of replacement parts, most that are available for delivery next day.
Easy to Customize

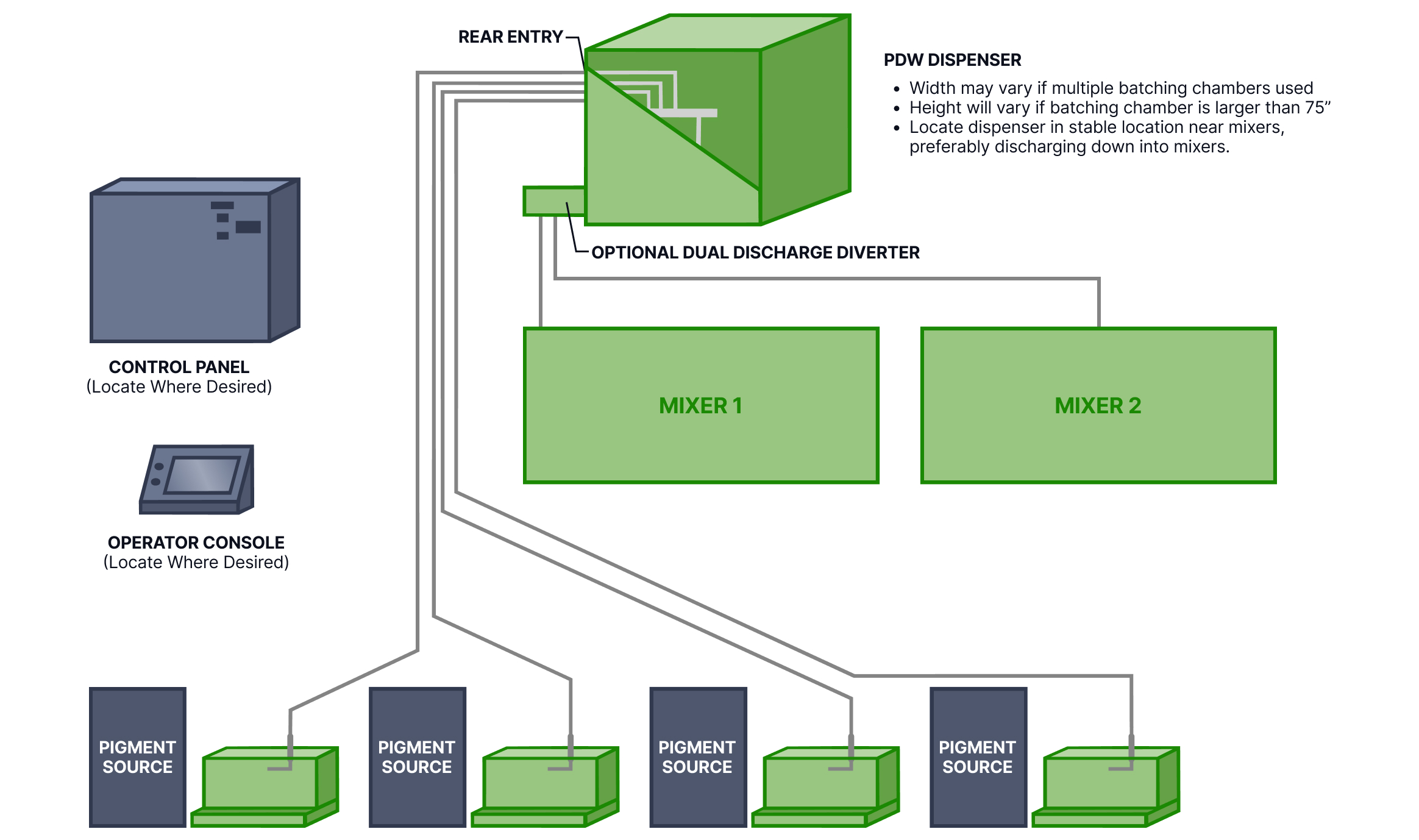

INDUSTEC can customize your system to suit a wide variety of special situations, such as unique batch timing requirements, high speed or high volume operations, or unusual installation configurations. The dispensing system is further customizable through various options, including optional holding chambers to service multiple high sped mixers and optional diverter valve to service multiple mixers.
Features
Up to Six Colors
Normally configured to draw from four pigment sources. Optional 5 or 6 source configuration is available.
Multi-Blend Operation
The operator can load up to four blend formulas for each mixer.
Multiple Fill Rates
INDUSTEC’s unique control system facilitates a rapid cycle time while maintaining very accurate results.
Remote Signals
The dispenser accepts remote fill and discharge signals from a host machine and signals the host when fill and discharge cycles are complete.
Inventory Control
The system trackers pigment use and will alert operator when pigment available drops below an operator-set minimum. These total weights can be viewed, printed, or reset as desired.
Control System
The dispenser control system incorporates an industrial rated PLC and touchscreen display. The control panel is designed to stand up to harsh plant environments.
Touchscreen Display
All system functions and parameters are accessed by simply touching the NEMA 4 rated touch screen.
Access Control
Owner selectable access codes are available to protect sensitive areas of dispenser functions.
Specifications
| WEIGHT RESOLUTION | 0.05 lbs or better on standard systems |
| CONTROL | Automatic or manual |
| CONTROLS SYSTEM PLC | Allen-Bradley or Automation Direct |
| CONTROL SYSTEMS DISPLAY | Color Touchscreen |
| NUMBER OF BLENDS | 4 per mixer |
| NUMBER OF FORMULAS | 500 or more |
| FORMULA NAMES | Customer defined |
| COLOR NAMES | Customer defined |
| INVENTORY CONTROL | Amount used (per color) Amount available (per color) Amount available warning |
| PRINTOUTS | Batch Report Batch Error Report Usage Report System Setup Report Formula Printout |
| ELECTRICAL | 120 VAC, 50/60 Hz, 40A |
| ELECTRICAL PROTECTION | Circuit breakers |
| AIR REQUIREMENTS | 100-125 PSI, .5" air line |
| WATER REQUIREMENTS | 60 PSI, 15 GPM |
| NUMBER BASE COLORS | 4 (standard) 5 or 6 optional |
| BATCH CAPACITY | 75 lbs, 120 lbs or 165 lbs |
| MULTIPLE MIXER OPERATION | Optional |
| HOLDING CHAMBERS | Optional |
| STANDARD PUMPS | Reversible, multi-speed, 2 gallon/minute, positive displacement, hose pump |
| ALARMS | Audible and visual Local and remote |
